U-Match Regular

U-Match (regular)

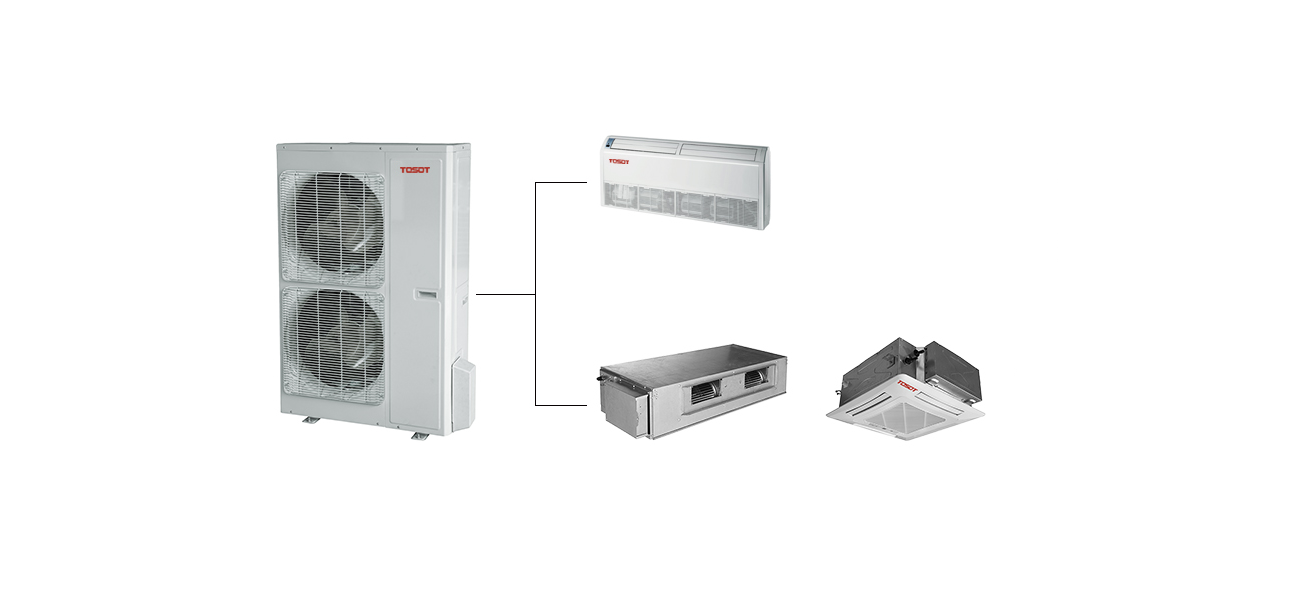

Single Zone Inverter Heat Pump System

Each U-Match heat pump is powered by Tosot’s energy efficient G10 inverter and a variable speed compressor. Our G10 inverter technology saves energy, reduces outdoor noise and keeps room temperature steady by eliminating the harsh starts & stops of conventional systems. And they’re available in a full range of capacities to perfectly match any size space, large or small. Best of all, the ultimate in reliable room comfort is generated with Eco friendly R410A refrigerant. U-Match systems are available in a choice of three sleek indoor options: Ceiling Cassette, Slim Duct or Universal Floor/Ceiling unit.

G-10 Inverter Control
Heavy Gauge Steel Cabinet
Sound Levels Down To 56 DB
Intelligent Defrost
Low Ambient Cooling Down To 0 °F
R410A Refrigerant
Multi-Point Diagnostics
Acrylic Resin/Anti-Corrosion Fin Coil Protection

3 DC Inverter
All DC inverter compressor and DC motor are adopted, so the energy efficiency of unit is higher and the power consumption in standby is lower.

Intelligent Defrosting
Defrosting is performed according to the actual frosting status judged by the temperature sensor, which effectively improves heating efficiency and ensures comfort in the room.

I Demand Function
When the energy-saving mode command is received by the outdoor unit, the upper power limit of unit will be controlled, with energy saving of 25%.

Indoor Unit

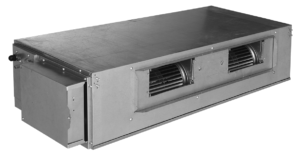

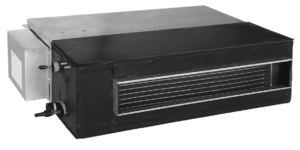

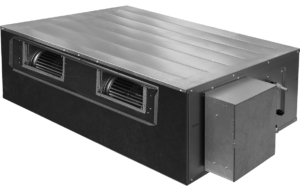

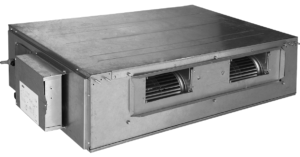

Slim Duct Type

Medium Static Pressure Capability
Slim Line Construction 8-inches high
Flexible Return Air From Bottom or Rear
XK-60 Tether Wired Controller
Internal Condensate Drain Pump
Sentry Float Switch
Environmentally Safe R-410A Refrigerant

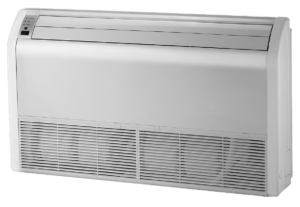

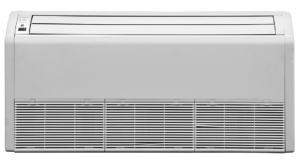

Floor Ceiling Type

4-way Discharge Air
Multi Speed Fan
IR Remote Control
XK-60 Tether Wired Controller (sold separately)
Swing Louver
Remote Control Lockout
Power Failure Recovery

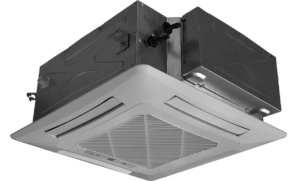

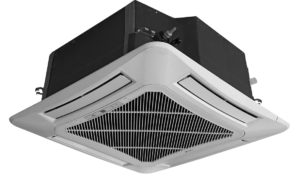

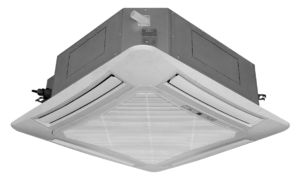

Ceiling-Cassette Type

4 – way Discharge Air
Multi Speed Fan
Remote Control Lockout
Swing Louver
Cleanable Air Filter
Decorative Discharge Air Grille
IR Remote Control
Power Failure Recovery
Internal Condensate Drain Pump
XK-60 Tether Wired Controller (sold separately)

Units Lineup

Capacity (BTU/h)		18K	24K	30K	36K	42K	48K

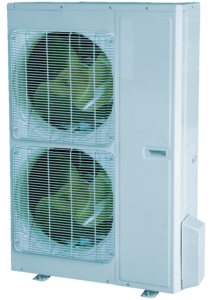

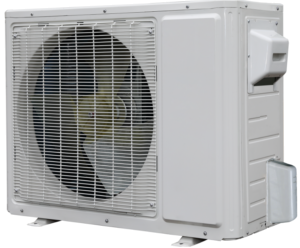

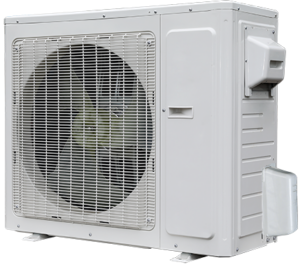

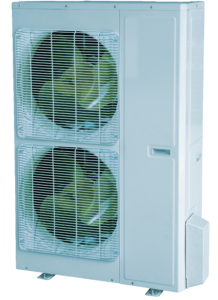

Outdoor Unit
Indoor Unit	Duct
	Cassette
	Floor Ceiling

Technical Specifications

18K

24K

30K

36K

42K

48K

18K

Specifications
Model	Outdoor unit			GUHD18ND3FO
	Indoor unit			Duct	Duct (with water pump)	Floor ceiling	Cassette
	Indoor unit			GFH18D3FI	GFH18D3FI	GTH18D3FI	GKH18D3FI
Capacity	Cooling		kW	5.0	5.0	5.0	5.0
	Cooling		Btu/h	17100	17100	17100	17100
	Heating		kW	5.5	5.5	5.6	5.4
	Heating		Btu/h	18800	18800	19100	18400
EER/COP			W/W	3.23/3.32	3.23/3.32	3.23/3.60	2.94/2.70
Power supply			V/Ph/Hz	208/230/1/60	208/230/1/60	208/230/1/60	208/230/1/60
Power input	Cooling		kW	1.55	1.55	1.55	1.70
Power input	Heating		kW	1.65	1.65	1.70	2.00
Current input	Cooling		A	7.93	7.93	7.93	8.70
Current input	Heating		A	8.44	8.44	7.93	9.21
Refrigerant charge volume			kg/oz	1.4/49.4	1.4/49.4	1.4/49.4	1.4/49.4
Indoor unit	Air flow volume		CFM	585	585	585	445
	Air flow volume		m³/h	1000	1000	1000	760
	ESP	Rated	In.wg	0.1	0.1	0	0
	ESP	Range	In.wg	0-0.12	0-0.12	0	0
	Sound pressure level (H/M/L)		dB(A)	39/36/28	39/36/28	42/38/32	46/44/37
	Dimension (W×D×H)	Outline	inch (mm)	40-3/4×28-3/8×10-3/8 (1035×720×265)	40-3/4×28-3/8×10-3/8 (1035×720×265)	48×27-1/2×8-7/8 (1220×700×225)	26-1/8×23-3/8×9-1/2 (665×595×240)
	Dimension (W×D×H)	Package	inch (mm)	44-1/4×31-3/8×12-3/4 (1123×798×323)	44-1/4×31-3/8×12-3/4 (1123×798×323)	52-7/8×32-3/8×12-3/8 (1343×823×315)	30-5/8×29×11-3/4 (778×738×300)
	Net weight/Gross weight		lbs (kg)	72.80/83.79 (33/38)	72.80/83.79 (33/38)	85.995/105.84 (39/48)	44.10/52.92 (20/24)
Panel	Dimension (W×D×H)	Outline	inch (mm)	-	-	-	26-3/8×26-3/8×2 (670×670×50)
	Dimension (W×D×H)	Package	inch (mm)	-	-	-	30×30×4-1/8 (763×763×105)
	Net weight/Gross weight		lbs (kg)	-	-	-	7.718/11.025 (3.5/5.0)
Outdoor unit	Sound pressure level		dB (A)	56	56	56	56
	Dimension (W×D×H)	Outline	inch (mm)	37-5/8×15-1/2×27-1/2 (955×395×700)	37-5/8×15-1/2×27-1/2 (955×395×700)	37-5/8×15-1/2×27-1/2 (955×395×700)	37-5/8×15-1/2×27-1/2 (955×395×700)
	Dimension (W×D×H)	Package	inch (mm)	40-1/2×18×29-1/2 (1029×458×750)	40-1/2×18×29-1/2 (1029×458×750)	40-1/2×18×29-1/2 (1029×458×750)	40-1/2×18×29-1/2 (1029×458×750)
	Net weight/Gross weight		lbs (kg)	105.8/114.7 (48/52)	105.8/114.7 (48/52)	105.8/114.7 (48/52)	105.8/114.7 (48/52)
Connection pipe	Outer diameter	Liquid	inch (mm)	φ1/4 (6.35)	φ1/4 (6.35)	φ1/4 (6.35)	φ1/4 (6.35)
	Outer diameter	Gas	inch (mm)	φ1/2 (12.7)	φ1/2 (12.7)	φ1/2 (12.7)	φ1/2 (12.7)
	Max. distance	Height	m	15	15	15	15
	Max. distance	Length	m	50	50	50	50
Loading quantity		40'GP/40'HQ	Set	93/95	93/95	89/97	95/105

24K

Specifications
Model	Outdoor unit			GUHD24ND3FO
	Indoor unit			Duct	Duct (with water pump)	Floor ceiling	Cassette
	Indoor unit			GFH24D3FI	GFH24D3FI	GTH24D3FI	GKH24D3FI
Capacity	Cooling		kW	7.0	7.0	7.0	7.0
	Cooling		Btu/h	23800	23800	23800	23800
	Heating		kW	8.0	8.0	8.0	8.0
	Heating		Btu/h	27200	27200	27200	27200
EER/COP			W/W	3.14/3.38	3.14/3.38	3.14/3.38	3.14/3.38
Power supply			V/Ph/Hz	208-230/1/60	208-230/1/60	208-230/1/60	208-230/1/60
Power input	Cooling		kW	2.23	2.23	2.23	2.23
Power input	Heating		kW	2.36	2.36	2.36	2.36
Current input	Cooling		A	11.41	11.41	11.41	11.41
Current input	Heating		A	12.07	12.07	12.07	12.07
Refrigerant charge volume			kg/oz	2.2/77.6	2.2/77.6	2.2/77.6	2.2/77.6
Indoor unit	Air flow volume		CFM	820	820	705	765
	Air flow volume		m³/h	1400	1400	1200	1300
	ESP	Rated	In.wg	0.1	0.1	0	0
	ESP	Range	In.wg	0-0.3	0-0.3	0	0
	Sound pressure level (H/M/L)		dB(A)	46/44/40	46/44/40	48/46/40	46/42/38
	Dimension (W×D×H)	Outline	inch (mm)	50-3/8×22×10-5/8 (1280×560×270)	50-3/8×22×10-5/8 (1280×560×270)	48×27-1/2×8-7/8 (1220×700×225)	36×33-1/8×9-1/2 (915×840×240)
	Dimension (W×D×H)	Package	inch (mm)	53-1/8×23-1/2×11-1/8 (1348×597×283)	53-1/8×23-1/2×11-1/8 (1348×597×283)	52-7/8×32-3/8×12-3/8 (1343×823×315)	45-1/4×37-3/4×13-3/8 (1148×958×340)
	Net weight/Gross weight		lbs (kg)	74.97/85.995 (34/39)	74.97/85.995 (34/39)	88.2/110.25 (40/50)	59.535/83.79 (27/38)
Panel	Dimension (W×D×H)	Outline	inch (mm)	-	-	-	37-1/2×37-1/2×2-3/8 (952×952×60)
	Dimension (W×D×H)	Package	inch (mm)	-	-	-	40-5/8×40-7/8×5-1/4 (1033×1038×133)
	Net weight/Gross weight		lbs (kg)	-	-	-	7.0/11.0
Outdoor unit	Sound pressure level		dB (A)	57	57	57	57
	Dimension (W×D×H)	Outline	inch (mm)	38-5/8×16-3/4×31-1/8 (980×425×790)	38-5/8×16-3/4×31-1/8 (980×425×790)	38-5/8×16-3/4×31-1/8 (980×425×790)	38-5/8×16-3/4×31-1/8 (980×425×790)
	Dimension (W×D×H)	Package	inch (mm)	42-5/8×19-1/4×33-5/8 (1083×488×855)	42-5/8×19-1/4×33-5/8 (1083×488×855)	42-5/8×19-1/4×33-5/8 (1083×488×855)	42-5/8×19-1/4×33-5/8 (1083×488×855)
	Net weight/Gross weight		lbs (kg)	152./163.1 (69/74)	152./163.1 (69/74)	152./163.1 (69/74)	152./163.1 (69/74)
Connection pipe	Outer diameter	Liquid	inch (mm)	φ3/8 (9.52)	φ3/8 (9.52)	φ3/8 (9.52)	φ3/8 (9.52)
	Outer diameter	Gas	inch (mm)	φ5/8 (15.9)	φ5/8 (15.9)	φ5/8 (15.9)	φ5/8 (15.9)
	Max. distance	Height	m	15	15	15	15
	Max. distance	Length	m	50	50	50	50
Loading quantity		40'GP/40'HQ	Set	70/86	70/86	70/86	56/71

30K

Specifications
Model	Outdoor unit			GUHD30ND3FO
	Indoor unit			Duct	Duct (with water pump)	Floor ceiling	Cassette
	Indoor unit			GFH30D3FI	GFH30D3FI	GTH30D3FI	GKH30D3FI
Capacity	Cooling		kW	8.3	8.3	8.3	8.3
	Cooling		Btu/h	28200	28200	28200	28200
	Heating		kW	9.2	9.2	9.2	9.2
	Heating		Btu/h	31200	31200	31200	31200
EER/COP			W/W	2.52/2.96	2.52/2.96	3.07/3.54	3.07/3.41
Power supply			V/Ph/Hz	208-230/1/60	208-230/1/60	208-230/1/60	208-230/1/60
Power input	Cooling		kW	3.30	3.30	2.70	2.70
Power input	Heating		kW	3.10	3.10	2.60	2.70
Current input	Cooling		A	16.88	16.88	12.28	13.81
Current input	Heating		A	15.86	15.86	13.30	12.79
Refrigerant charge volume			kg/oz	2.4/84.7	2.4/84.7	2.4/84.7	2.4/84.7
Indoor unit	Air flow volume		CFM	820	820	880	880
	Air flow volume		m³/h	1400	1400	1500	1500
	ESP	Rated	In.wg	0.15	0.15	0	0
	ESP	Range	In.wg	0-0.3	0-0.3	0	0
	Sound pressure level (H/M/L)		dB(A)	46/44/40	46/44/40	46/44/38	48/45/40
	Dimension (W×D×H)	Outline	inch (mm)	50-3/8×22×10-5/8 (1280×560×270)	50-3/8×22×10-5/8 (1280×560×270)	55-7/8×27-1/2×9-5/8 (1420×700×245)	36×33-1/8×12-5/8 (915×840×320)
	Dimension (W×D×H)	Package	inch (mm)	53-1/8×23-1/2×11-1/8 (1348×597×283)	53-1/8×23-1/2×11-1/8 (1348×597×283)	61×32-5/8×13-5/8 (1548×828×345)	45-1/4×37-3/4×16-1/2 (1148×958×420)
	Net weight/Gross weight		lbs (kg)	77.2/86.0 (35/39)	77.2/86.0 (35/39)	105.8/123.5 (48/56)	70.6/97.0 (32/44)
Panel	Dimension (W×D×H)	Outline	inch (mm)	-	-	-	37-1/2×37-1/2×2-3/8 (952×952×60)
	Dimension (W×D×H)	Package	inch (mm)	-	-		40-5/8×40-7/8×5-1/4 (1033×1038×133)
	Net weight/Gross weight		lbs (kg)	-	-	-	15.4/24.3 (7.0/11.0)
Outdoor unit	Sound pressure level		dB (A)	58	58	58	58
	Dimension (W×D×H)	Outline	inch (mm)	38-5/8×16-3/4×31-1/8 (980×425×790)	38-5/8×16-3/4×31-1/8 (980×425×790)	38-5/8×16-3/4×31-1/8 (980×425×790)	38-5/8×16-3/4×31-1/8 (980×425×790)
	Dimension (W×D×H)	Package	inch (mm)	42-5/8×19-1/4×33-5/8 (1083×488×855)	42-5/8×19-1/4×33-5/8 (1083×488×855)	42-5/8×19-1/4×33-5/8 (1083×488×855)	42-5/8×19-1/4×33-5/8 (1083×488×855)
	Net weight/Gross weight		lbs (kg)	158.7/169.8 (72/77)	158.7/169.8 (72/77)	158.7/169.8 (72/77)	158.7/169.8 (72/77)
Connection pipe	Outer diameter	Liquid	inch (mm)	φ3/8 (9.52)	φ3/8 (9.52)	φ3/8 (9.52)	φ3/8 (9.52)
	Outer diameter	Gas	inch (mm)	φ5/8 (15.9)	φ5/8 (15.9)	φ5/8 (15.9)	φ5/8 (15.9)
	Max. distance	Height	m	15	15	15	15
	Max. distance	Length	m	50	50	50	50
Loading quantity		40'GP/40'HQ	Set	49/69	49/69	49/69	49/69

36K

Specifications
Model	Outdoor unit			GUHD36ND3FO
	Indoor unit			Duct	Duct (with water pump)	Floor ceiling	Cassette
	Indoor unit			GFH36D3FI	GFH36D3FI	GTH36D3FI	GKH36D3FI
Capacity	Cooling		kW	10.0	10.0	10.0	10.0
	Cooling		Btu/h	34000	34000	34000	34000
	Heating		kW	12.0	12.0	12.0	12.0
	Heating		Btu/h	41000	41000	41000	41000
EER/COP			W/W	3.05/3.20	3.05/3.20	3.05/3.20	3.05/3.20
Power supply			V/Ph/Hz	208-230/1/60	208-230/1/60	208-230/1/60	208-230/1/60
Power input	Cooling		kW	3.28	3.28	3.28	3.28
Power input	Heating		kW	3.75	3.75	3.75	3.75
Current input	Cooling		A	16.78	16.78	16.78	16.78
Current input	Heating		A	19.18	19.18	19.18	19.18
Refrigerant charge volume			kg/oz	3.5/123.5	3.5/123.5	3.5/123.5	3.5/123.5
Indoor unit	Air flow volume		CFM	1175	1175	1115	1095
	Air flow volume		m³/h	2000	2000	1900	1860
	ESP	Rated	In.wg	0.15	0.15	0	0
	ESP	Range	In.wg	0-0.4	0-0.4	0	0
	Sound pressure level (H/M/L)		dB(A)	52/48/44	52/48/44	53/51/46	49/46/43
	Dimension (W×D×H)	Outline	inch (mm)	48-1/4×30-1/2×11-3/8 (1225×775×290)	48-1/4×30-1/2×11-3/8 (1225×775×290)	55-7/8×27-1/2×9-5/8 (1420×700×245)	36×33-1/8×12-5/8 (915×840×320)
	Dimension (W×D×H)	Package	inch (mm)	52-5/8×34-1/2×12 (1338×877×305)	52-5/8×34-1/2×12 (1338×877×305)	61×32-5/8×13-5/8 (1548×828×345)	45-1/4×37-3/4×16-1/2 (1148×958×420)
	Net weight/Gross weight		lbs (kg)	101.43/116.865 (46/53)	101.43/116.865 (46/53)	105.84/123.48 (48/56)	70.6/97.0 (32/44)
Panel	Dimension (W×D×H)	Outline	inch (mm)	-	-	-	37-1/2×37-1/2×2-3/8 (952×952×60)
	Dimension (W×D×H)	Package	inch (mm)	-	-	-	40-5/8×40-7/8×5-1/4 (1033×1038×133)
	Net weight/Gross weight		lbs (kg)	-	-	-	15.4/24.3 (7.0/11.0)
Outdoor unit	Sound pressure level		dB (A)	63	63	63	63
	Dimension (W×D×H)	Outline	inch (mm)	43-1/2×17-3/8×43-1/4 (1105×440×1100)	43-1/2×17-3/8×43-1/4 (1105×440×1100)	43-1/2×17-3/8×43-1/4 (1105×440×1100)	43-1/2×17-3/8×43-1/4 (1105×440×1100)
	Dimension (W×D×H)	Package	inch (mm)	45-5/8×19-3/8×48-5/8 (1158×493×1235)	45-5/8×19-3/8×48-5/8 (1158×493×1235)	45-5/8×19-3/8×48-5/8 (1158×493×1235)	45-5/8×19-3/8×48-5/8 (1158×493×1235)
	Net weight/Gross weight		lbs (kg)	205.1/222.7 (93/101)	205.1/222.7 (93/101)	205.1/222.7 (93/101)	205.1/222.7 (93/101)
Connection pipe	Outer diameter	Liquid	inch (mm)	φ3/8 (9.52)	φ3/8 (9.52)	φ3/8 (9.52)	φ3/8 (9.52)
	Outer diameter	Gas	inch (mm)	φ5/8 (15.9)	φ5/8 (15.9)	φ5/8 (15.9)	φ5/8 (15.9)
	Max. distance	Height	m	15	15	15	15
	Max. distance	Length	m	50	50	50	50
Loading quantity		40'GP/40'HQ	Set	45/60	45/60	45/56	45/56

42K

Specifications
Model	Outdoor unit			GUHD42ND3FO
	Indoor unit			Duct	Duct (with water pump)	Floor ceiling	Cassette
	Indoor unit			GFH42D3FI	GFH42D3FI	GTH42D3FI	GKH42D3FI
Capacity	Cooling		kW	11.5	11.5	11.5	11.5
	Cooling		Btu/h	39500	39500	39500	39500
	Heating		kW	13.0	13.0	13.0	13.0
	Heating		Btu/h	44000	44000	44000	44000
EER/COP			W/W	2.77/3.32	2.77/3.32	2.84/3.20	2.61/2.92
Power supply			V/Ph/Hz	208-230/1/60	208-230/1/60	208-230/1/60	208-230/1/60
Power input	Cooling		kW	4.15	4.15	4.05	4.40
Power input	Heating		kW	3.90	3.90	4.05	4.45
Current input	Cooling		A	21.23	21.23	20.72	22.51
Current input	Heating		A	19.95	19.95	20.72	22.76
Refrigerant charge volume			kg/oz	3.7/130.5	3.7/130.5	3.7/130.5	3.7/130.5
Indoor unit	Air flow volume		CFM	1175	1175	1115	1095
	Air flow volume		m³/h	2000	2000	1900	1860
	ESP	Rated	In.wg	0.15	0.15	0	0
	ESP	Range	In.wg	0-0.4	0-0.4	0	0
	Sound pressure level (H/M/L)		dB(A)	52/48/44	52/48/44	54/52/47	49/46/43
	Dimension (W×D×H)	Outline	inch (mm)	48-1/4×30-1/2×11-3/8 (1225×775×290)	48-1/4×30-1/2×11-3/8 (1225×775×290)	55-7/8×27-1/2×9-5/8 (1420×700×245)	36×33-1/8×12-5/8 (915×840×320)
	Dimension (W×D×H)	Package	inch (mm)	52-5/8×34-1/2×12 (1338×877×305)	52-5/8×34-1/2×12 (1338×877×305)	61×32-5/8×13-5/8 (1548×828×345)	45-1/4×37-3/4×16-1/2 (1148×958×420)
	Net weight/Gross weight		lbs (kg)	101.4/116.9 (46/53)	101.4/116.9 (46/53)	110.2/127.9 (50/58)	70.6/97.0 (32/44)
Panel	Dimension (W×D×H)	Outline	inch (mm)	-	-	-	37-1/2×37-1/2×2-3/8 (952×952×60)
	Dimension (W×D×H)	Package	inch (mm)	-	-	-	40-5/8×40-7/8×5-1/4 (1033×1038×133)
	Net weight/Gross weight		lbs (kg)	-	-	-	15.4/24.3 (7.0/11.0)
Outdoor unit	Sound pressure level		dB (A)	61	61	61	61
	Dimension (W×D×H)	Outline	inch (mm)	37-3/4×16-1/8×53-1/8 (960×410×1350)	37-3/4×16-1/8×53-1/8 (960×410×1350)	37-3/4×16-1/8×53-1/8 (960×410×1350)	37-3/4×16-1/8×53-1/8 (960×410×1350)
	Dimension (W×D×H)	Package	inch (mm)	41-1/8×17-7/8×59 (1043×453×1500)	41-1/8×17-7/8×59 (1043×453×1500)	41-1/8×17-7/8×59 (1043×453×1500)	41-1/8×17-7/8×59 (1043×453×1500)
	Net weight/Gross weight		lbs (kg)	209.5/231.5 (95/105)	209.5/231.5 (95/105)	209.5/231.5 (95/105)	209.5/231.5 (95/105)
Connection pipe	Outer diameter	Liquid	inch (mm)	φ3/8 (9.52)	φ3/8 (9.52)	φ3/8 (9.52)	φ3/8 (9.52)
	Outer diameter	Gas	inch (mm)	φ5/8 (15.9)	φ5/8 (15.9)	φ5/8 (15.9)	φ5/8 (15.9)
	Max. distance	Height	m	15	15	15	15
	Max. distance	Length	m	50	50	50	50
Loading quantity		40'GP/40'HQ	Set	52/58	52/58	43/47	40/48

48K

Specifications
Model	Outdoor unit			GUHD48ND3FO
	Indoor unit			Duct	Duct (with water pump)	Floor ceiling	Cassette
	Indoor unit			GFH48D3FI	GFH48D3FI	GTH48D3FI	GKH48D3FI
Capacity	Cooling		kW	14.0	14.0	14.0	14.0
	Cooling		Btu/h	48000	48000	48000	48000
	Heating		kW	16.0	16.0	16.0	16.0
	Heating		Btu/h	54500	54500	54500	54500
EER/COP			W/W	2.72/3.10	2.72/3.10	2.55/3.48	2.55/3.32
Power supply			V/Ph/Hz	208-230/1/60	208-230/1/60	208-230/1/60	208-230/1/60
Power input	Cooling		kW	5.15	5.15	5.50	5.50
Power input	Heating		kW	5.15	5.15	4.60	5.10
Current input	Cooling		A	26.34	26.34	25.32	28.13
Current input	Heating		A	26.34	26.34	23.53	24.55
Refrigerant charge volume			kg/oz	4/141.1	4/141.1	4/141.1	4/141.1
Indoor unit	Air flow volume		CFM	1470	1470	1350	1350
	Air flow volume		m³/h	2500	2500	2300	2300
	ESP	Rated	In.wg	0.2	0.2	0	0
	ESP	Range	In.wg	0-0.5	0-0.5	0	0
	Sound pressure level (H/M/L)		dB(A)	53/49/45	53/49/45	55/50/46	52/47/41
	Dimension (W×D×H)	Outline	inch (mm)	52-3/4×29-1/2×13-3/4 (1340×750×350)	52-3/4×29-1/2×13-3/4 (1340×750×350)	66-7/8×27-1/2×9-5/8 (1700×700×245)	52-3/4×29-1/2×13-3/4 (1340×750×350)
	Dimension (W×D×H)	Package	inch (mm)	56×33×17-7/8 (1423×837×455)	56×33×17-7/8 (1423×837×455)	72×32-5/8×13-5/8 (1828×828×345)	40-1/4×39-1/8×14-3/4 (1023×993×375)
	Net weight/Gross weight		lbs (kg)	123.48/154.35 (56/70)	123.48/154.35 (56/70)	130.1/149.9 (59/68)	94.8/110.2 (43/50)
Panel	Dimension (W×D×H)	Outline	inch (mm)	-	-	-	41×41×2-1/2 (1040×1040×65)
	Dimension (W×D×H)	Package	inch (mm)	-	-	-	44-3/4×44-3/4×5-1/2 (1137×1137×140)
	Net weight/Gross weight		lbs (kg)	-	-	-	17.6/26.5 (8.0/12.0)
Outdoor unit	Sound pressure level		dB (A)	59	59	59	59
	Dimension (W×D×H)	Outline	inch (mm)	37-3/4×16-1/8×53-1/8 (960×410×1350)	37-3/4×16-1/8×53-1/8 (960×410×1350)	37-3/4×16-1/8×53-1/8 (960×410×1350)	37-3/4×16-1/8×53-1/8 (960×410×1350)
	Dimension (W×D×H)	Package	inch (mm)	41-1/8×17-7/8×59 (1043×453×1500)	41-1/8×17-7/8×59 (1043×453×1500)	41-1/8×17-7/8×59 (1043×453×1500)	41-1/8×17-7/8×59 (1043×453×1500)
	Net weight/Gross weight		lbs (kg)	231.5/253.6 (105/115)	231.5/253.6 (105/115)	231.5/253.6 (105/115)	231.5/253.6 (105/115)
Connection pipe	Outer diameter	Liquid	inch (mm)	φ3/8 (9.52)	φ3/8 (9.52)	φ3/8 (9.52)	φ3/8 (9.52)
	Outer diameter	Gas	inch (mm)	φ5/8 (15.9)	φ5/8 (15.9)	φ5/8 (15.9)	φ5/8 (15.9)
	Max. distance	Height	m	15	15	15	15
	Max. distance	Length	m	70	70	70	70
Loading quantity		40'GP/40'HQ	Set	38/48	38/48	43/50	43/50
