U-Match (high ESP)
Single Zone Inverter Heat Pump Duct System
Powerful, flexible air distribution with slim duct discretion, this 1-on-1 system allows for a compact, unobtrusive footprint and easy installation. The G10 inverter technology delivers precise, efficient temperature control with flexible return air options (bottom or rear).
- Sound Levels Down To 56 Db(A) On Outdoor Units
- Cooling Range: 0°F – 115°F
- Acrylic Resin Coil Coating
- Self-Diagnosis & Intelligent Defrost
- Internal Condensate Pump & Float Switch Included
- Maximum Pipe Length Of 165 Ft – 230 Ft To Fit A Wide Range Of Applications
- Xk60 Wired Controller
- High External Static Capability For: Healthier Air Filtration, Quieter Operation, Improved Air Distribution, And A More Aesthetic Concealed “Look”
| 3 DC Inverter All DC inverter compressor and DC motor are adopted, so the energy efficiency of unit is higher and the power consumption in standby is lower. |
| Intelligent Defrosting Defrosting is performed according to the actual frosting status judged by the temperature sensor, which effectively improves heating efficiency and ensures comfort in the room. |
| I Demand Function When the energy-saving mode command is received by the outdoor unit, the upper power limit of unit will be controlled, with energy saving of 25%. |

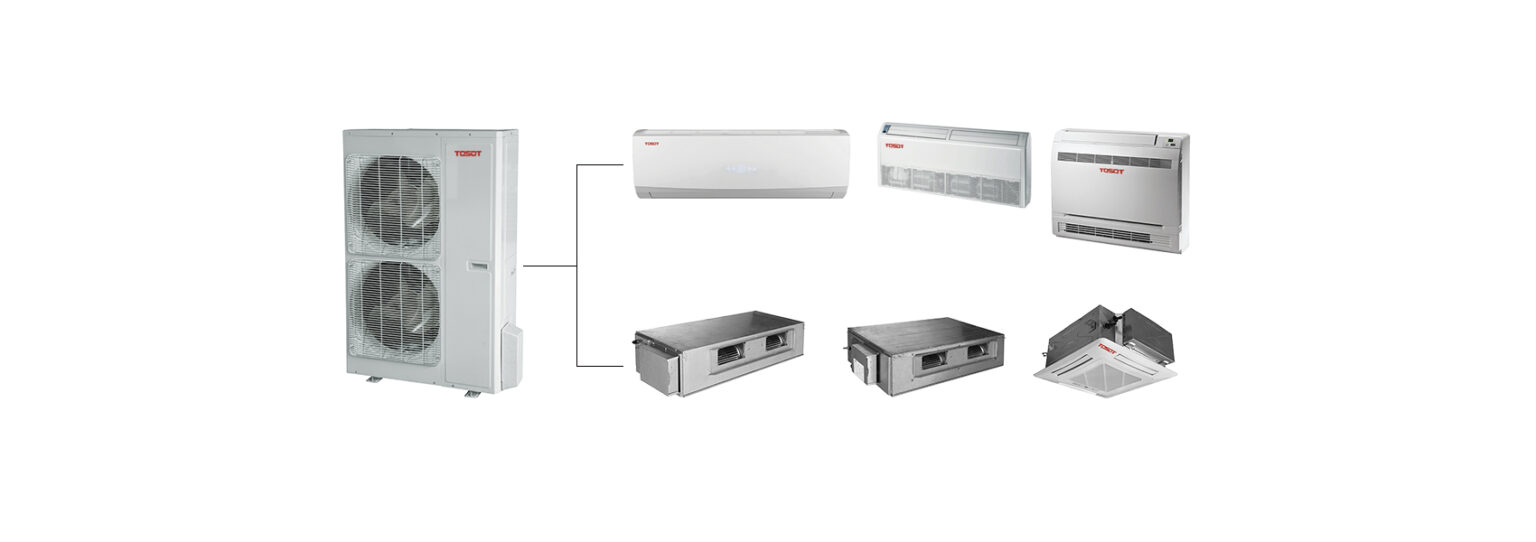

Units Lineup
| Capacity (BTU/h) | 18K | 24K | 30K | 36K | 42K | 48K | |
|---|---|---|---|---|---|---|---|

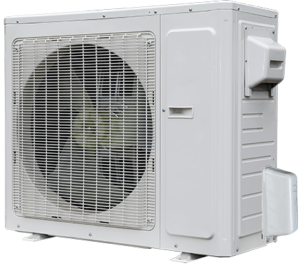

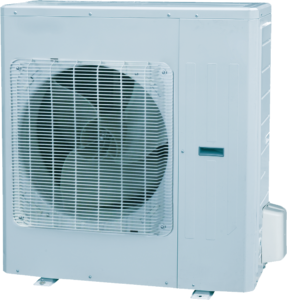

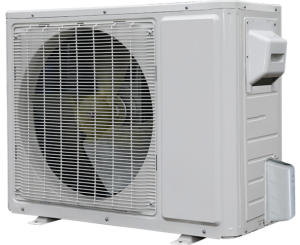

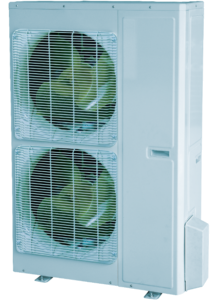

| Outdoor Unit |  |  |  |  |  |  |
|

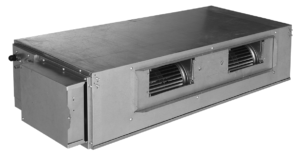

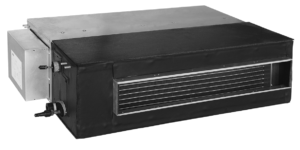

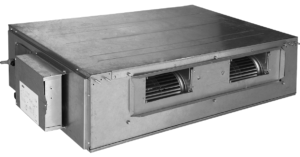

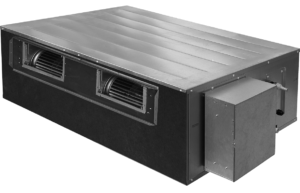

| Indoor Unit | Duct |  |  |  |  |  |  |

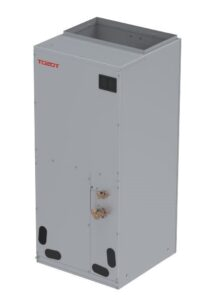

| Air Handler |  |  |
|||||
Technical Specifications
18K, 24K, 30K
36K, 42K, 48K
18K, 24K, 30K
| Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Outdoor unit | GUHD18ND3F1O | GUHD24ND3F1O | GUHD30ND3F1O | |||||
| Indoor unit | Duct | Duct | Duct | Duct | Duct | Duct | |||
| GFH18D3F2I | GFH18D3F3I | GFH24D3F2I | GFH24D3F3I | GFH30D3F2I | GFH30D3F | ||||
| Capacity | Cooling | kW | 5.00 | 5.00 | 7.00 | 7.00 | 8.50 | 8.50 | |
| Btu/h | 17100 | 17100 | 23800 | 23800 | 29000 | 29000 | |||
| Heating | kW | 5.60 | 5.60 | 8.00 | 8.00 | 9.20 | 9.20 | ||
| Btu/h | 19100 | 19100 | 27200 | 27200 | 31200 | 31200 | |||
| EER/COP | W/W | 3.23/3.50 | 3.23/3.50 | 3.04/3.20 | 3.04/3.20 | 2.43/2.95 | 2.43/2.95 | ||
| Power supply | V/Ph/Hz | 208-230/1/60 | 208-230/1/60 | 208-230/1/60 | 208-230/1/60 | 208-230/1/60 | 208-230/1/60 | ||
| Power input | Cooling | kW | 1.55 | 1.55 | 2.30 | 2.30 | 3.50 | 3.50 | |
| Heating | kW | 1.60 | 1.60 | 2.50 | 2.50 | 3.10 | 3.10 | ||
| Current input | Cooling | A | 8 | 8 | 11 | 11 | 16 | 16 | |
| Heating | A | 8 | 8 | 12 | 12 | 14 | 14 | ||
| Refrigerant charge volume | kg/oz | 1.4/49.4 | 1.4/49.4 | 2.2/77.6 | 2.2/77.6 | 2.4/84.7 | 2.4/84.7 | ||
| Indoor unit | Air flow volume | CFM | 705 | 705 | 820 | 820 | 940 | 940 | |
| m³/h | 1200 | 1200 | 1400 | 1400 | 1600 | 1600 | |||
| ESP | Rated | In.wg | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | |
| Range | In.wg | 0-0.4 | 0-0.4 | 0-0.8 | 0-0.8 | 0-0.8 | 0-0.8 | ||
| Sound pressure level (H/M/L) | dB(A) | 43/41/40 | 43/41/40 | 41/40/38 | 41/40/38 | 41/40/38 | 41/40/38 | ||
| Dimension (W×D×H) | Outline | inch (mm) | 50-3/8×22×10-5/8 (1280×560×270) | 50-3/8×22×10-5/8 (1280×560×270) | 48-1/4×30-1/2×11-3/8 (1225×775×290) | 48-1/4×30-1/2×11-3/8 (1225×775×290) | 48-1/4×30-1/2×11-3/8 (1225×775×290) | 48-1/4×30-1/2×11-3/8 (1225×775×290) |
|
| Package | inch (mm) | 53-1/8×23-1/2×11-1/8 (1348×597×283) | 53-1/8×23-1/2×11-1/8 (1348×597×283) | 52-5/8×34-1/2×12 (1338×877×305) | 52-5/8×34-1/2×12 (1338×877×305) | 52-5/8×34-1/2×12 (1338×877×305) | 52-5/8×34-1/2×12 (1338×877×305) |
||
| Net weight/Gross weight | lbs (kg) | 75/86 (34/39) | 75/86 (35/40) | 106/123 (48/56) | 108/126 (49/57) | 106/123 (48/56) | 108/126 (49/57) | ||
| Outdoor unit | Dimension (W×D×H) | Outline | inch (mm) | 37-5/8×15-1/2×27-1/2 (955×395×700) | 37-5/8×15-1/2×27-1/2 (955×395×700) | 37-5/8×15-1/2×27-1/2 (955×395×700) | 37-5/8×15-1/2×27-1/2 (955×395×700) | 37-5/8×15-1/2×27-1/2 (955×395×700) | 37-5/8×15-1/2×27-1/2 (955×395×700) |
| Package | inch (mm) | 40-1/2×18×29-1/2 (1029×458×750) | 40-1/2×18×29-1/2 (1029×458×750) | 42-5/8×19-1/4×33-5/8 (1083×488×855) | 42-5/8×19-1/4×33-5/8 (1083×488×855) | 42-5/8×19-1/4×33-5/8 (1083×488×855) | 42-5/8×19-1/4×33-5/8 (1083×488×855) |
||
| Net weight/Gross weight | lbs (kg) | 108/115 (49/52) | 108/115 (49/52) | 150/161 (68/73) | 150/161 (68/73) | 154/165 (70/75) | 154/165 (70/75) | ||
| Connection pipe | Outer diameter | Liquid | inch (mm) | Φ1/4 (6.35) | Φ1/4 (6.35) | Φ3/8 (9.52) | Φ3/8 (9.52) | Φ3/8 (9.52) | Φ3/8 (9.52) |
| Gas | inch (mm) | Φ1/2 (12.7) | Φ1/2 (12.7) | Φ5/8 (15.9) | Φ5/8 (15.9) | Φ5/8 (15.9) | Φ5/8 (15.9) | ||
| Max. distance | Height | m | 15 | 15 | 15 | 15 | 15 | 15 | |
| Length | m | 50 | 50 | 50 | 50 | 50 | 50 | ||
| Loading quantity | 40’GP/40’HQ | set | 93/95 | 93/95 | 70/86 | 70/86 | 49/69 | 49/69 | |
36K, 42K, 48K
| Specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Outdoor unit | GUHD36ND3F1O | GUHD42ND3F1O | GUHD48ND3F1O | |||||||
| Indoor unit | Duct | Duct | Air Handle | Duct | Duct | Duct | Duct | Air Handle | |||
| GFH36D3F2I | GFH36D3F3I | GUD36A/B-D(U) | GFH42D3F2I | GFH42D3F3I | GFH48D3F2I | GFH48D3F3I | GUD48A/B-D(U) | ||||
| Capacity | Cooling | kW | 10.00 | 10.00 | 10.00 | 12.00 | 12.00 | 14.00 | 14.00 | 14.00 | |
| Btu/h | 34000 | 34000 | 34000 | 41000 | 41000 | 48000 | 48000 | 48000 | |||
| Heating | kW | 12.00 | 12.00 | 12.00 | 13.80 | 13.80 | 15.00 | 15.00 | 15.00 | ||
| Btu/h | 41000 | 41000 | 41000 | 47000 | 47000 | 51000 | 51000 | 51000 | |||
| EER/COP | W/W | 2.78/3.53 | 2.78/3.53 | 2.94/3.43 | 3.00/3.21 | 3.00/3.21 | 2.80/3.00 | 2.80/3.00 | 2.82/3.00 | ||
| Power supply | V/Ph/Hz | 208-230/1/60 | 208-230/1/60 | 208-230/1/60 | 208-230/1/60 | 208-230/1/60 | 208-230/1/60 | 208-230/1/60 | 208-230/1/60 | ||
| Power input | Cooling | kW | 3.60 | 3.60 | 3.40 | 4.00 | 4.00 | 5.00 | 5.00 | 5.00 | |
| Heating | kW | 3.40 | 3.40 | 3.50 | 4.30 | 4.30 | 5.00 | 5.00 | 5.00 | ||
| Current input | Cooling | A | 18 | 18 | 16 | 20 | 20 | 25 | 25 | 25 | |
| Heating | A | 16 | 16 | 17 | 21 | 21 | 24 | 24 | 24 | ||
| Refrigerant charge volume | kg/oz | 3.5/123.5 | 3.5/123.5 | 3.5/123.5 | 3.5/123.5 | 3.5/123.5 | 4/141.1 | 4/141.1 | 4/141.1 | ||
| Indoor unit | Air flow volume | CFM | 1175 | 1175 | 1175 | 1300 | 1300 | 1350 | 1350 | 1410 | |
| m³/h | 2000 | 2000 | 2000 | 2200 | 2200 | 2300 | 2300 | 1400 | |||
| ESP | Rated | In.wg | 0.2 | 0.2 | 0.15 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | |
| Range | In.wg | 0-0.8 | 0-0.8 | 0-0.4 | 0-0.8 | 0-0.8 | 0-0.8 | 0-0.8 | 0-0.5 | ||
| Sound pressure level (H/M/L) | dB(A) | 49/48/47 | 49/48/47 | 45/43/42 | 49/48/47 | 49/48/47 | 46/45/44 | 46/45/44 | 49/47/46 | ||
| Dimension (W×D×H) | Outline | inch (mm) | 52-3/4×29-1/2×13-3/4 (1340×750×350) | 52-3/4×29-1/2×13-3/4 (1340×750×350) | 21-1/8×21-3/8×49 (538×542×1244) | 52-3/4×29-1/2×13-3/4 (1340×750×350) | 52-3/4×29-1/2×13-3/4 (1340×750×350) | 59×31-1/2×15-3/8 (1500×800×390) | 59×31-1/2×15-3/8 (1500×800×390) | 24-3/4×21-3/8×49 (628×542×1244) |
|
| Package | inch (mm) | 56×33×17-7/8 (1423×837×455) | 56×33×17-7/8 (1423×837×455) | 26×23-3/4×50-3/8 (660×603×1280) | 56×33×17-7/8 (1423×837×455) | 56×33×17-7/8 (1423×837×455) | 62-1/8×34-3/4×18-5/8 (1578×883×472) | 62-1/8×34-3/4×18-5/8 (1578×883×472) | 27-1/4×26×50-3/8 (693×660×1280) |
||
| Net weight/Gross weight | lbs (kg) | 128/154 (58/70) | 130/157 (59/71) | 154/168 (70/76) | 135/161 (61/73) | 137/163 (62/74) | 172/225 (78/102) | 172/225 (78/102) | 183/196 (83/89) | ||
| Outdoor unit | Dimension (W×D×H) | Outline | inch (mm) | 43-1/2×17-3/8×43-3/4 (1105×440×1110) | 43-1/2×17-3/8×43-3/4 (1105×440×1110) | 43-1/2×17-3/8×43-3/4 (1105×440×1110) | 37-3/4×16-1/8×53-1/8 (960×410×1350) | 37-3/4×16-1/8×53-1/8 (960×410×1350) | 37-3/4×16-1/8×53-1/8 (960×410×1350) | 37-3/4×16-1/8×53-1/8 (960×410×1350) | 37-3/4×16-1/8×53-1/8 (960×410×1350) |
| Package | inch (mm) | 45-5/8×19-3/8×48-5/8 (1158×493×1235) | 45-5/8×19-3/8×48-5/8 (1158×493×1235) | 45-5/8×19-3/8×48-5/8 (1158×493×1235) | 41-1/8×17-7/8×59 (1043×453×1500) | 41-1/8×17-7/8×59 (1043×453×1500) | 41-1/8×17-7/8×59 (1043×453×1500) | 41-1/8×17-7/8×59 (1043×453×1500) | 41-1/8×17-7/8×59 (1043×453×1500) |
||
| Net weight/Gross weight | lbs (kg) | 223/247 (101/112) | 223/247 (101/112) | 223/247 (101/112) | 236/260 (107/118) | 236/260 (107/118) | 236/260 (107/118) | 236/260 (107/118) | 236/260 (107/118) | ||
| Connection pipe | Outer diameter | Liquid | inch (mm) | Φ3/8 (9.52) | Φ3/8 (9.52) | Φ3/8 (9.52) | Φ3/8 (9.52) | Φ3/8 (9.52) | Φ3/8 (9.52) | Φ3/8 (9.52) | Φ3/8 (9.52) |
| Gas | inch (mm) | Φ5/8 (15.9) | Φ5/8 (15.9) | Φ5/8 (15.9) | Φ5/8 (15.9) | Φ5/8 (15.9) | Φ5/8 (15.9) | Φ5/8 (15.9) | Φ5/8 (15.9) | ||
| Max. distance | Height | m | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| Length | m | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | ||
| Loading quantity | 40’GP/40’HQ | set | 45/60 | 45/60 | 28/51 | 52/58 | 52/58 | 38/48 | 38/48 | 28/36 | |
